Taking a payment on your PAX device

Taking a payment on your PAX device

Find out how simple it is to take payments using Tyl’s PAX A50, A80 or A920 Pro devices.

  1. On your PAX device, open the “Nexo” or “NatWest Payments” app
  2. Select the ‘sale’ shortcut from the app home screen

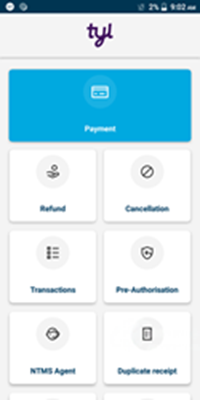

    PAX home screen

  3. Select ‘payment’

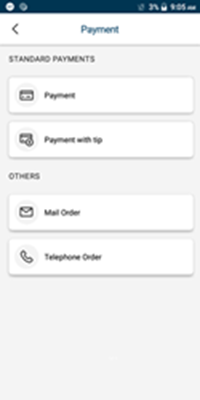

    PAX payment screen

  4. Enter the amount and press ‘confirm’

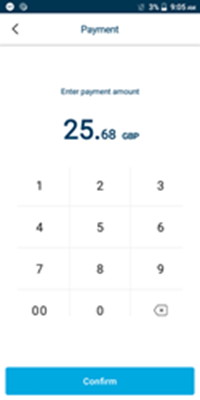

    PAX payment amount

  5. If setup, you may also be asked to enter a transaction reference. You can skip this step if not needed.

    PAX reference number

  6. Insert or present card
    1. Insert card into chip card reader on the bottom edge of the device, enter the pin and press ‘confirm’
    2. present the payment card to the contactless reader located at the top on the back of the terminal

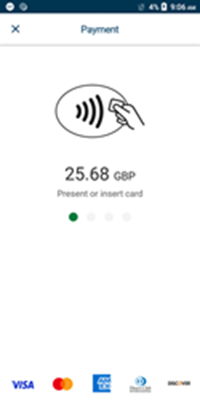

      PAX Payment confirmation
  7. Issuing receipts
    1. Enter the customer’s email address and press confirm if they wish to receive an email receipt. You skip this step by pressing the back arrow on the top left of the device screen. You’ll see a confirmation page once the email receipt has been sent, press ‘done’
  8. Once the transaction has processed you’ll see ‘success’ on the screen
